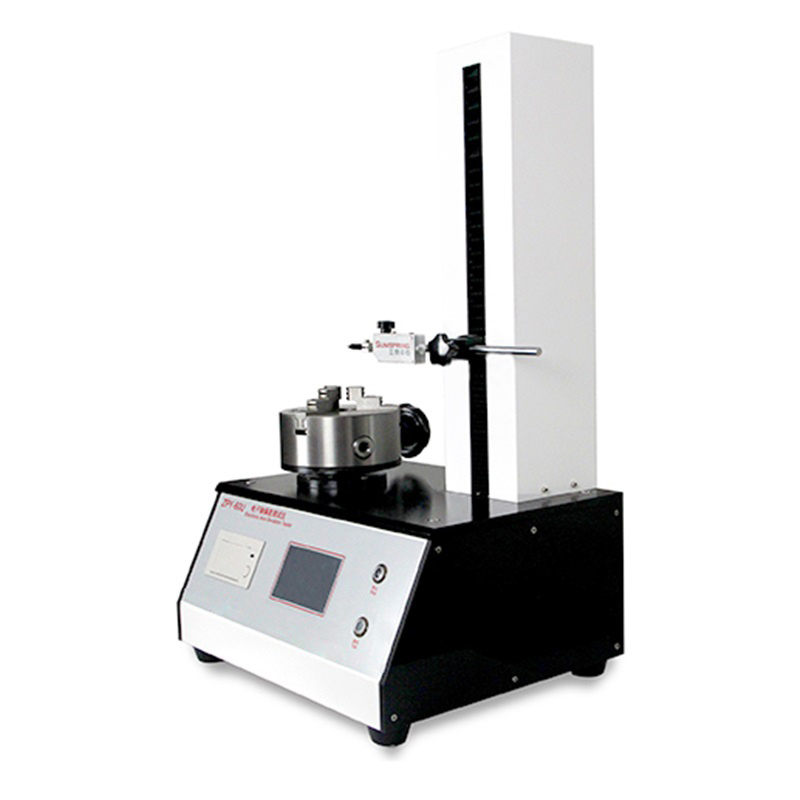

Electronic Axis Deviation Tester ZPY-60U designed for determination vertical deviation for a variety of specialty foods, cosmetics, pharmaceuticals and other industries.
Test process is automatic completed, users only need to place the test specimen between the clamp.Perpendicularity Tester will automatically rotate to read minimum and maximum deviation value, and depicts the roundness curve, help customers to analysis the sample quality. It is the highest test automation and precision tester among similar products, is the ideal tester for quality inspection agency, scientific research units.

Test principle

Fix bottle bottom on the horizantal plate to make the bottleneck contact with the dial gauge . Rotate 360°to read the maximum and minimum value,1/2 of maximum and minimum difference is axis vertical deviation value. Infusion Bottle verticality testing machine with Self-centering chuck high concentricity characteristics together with a stand  which can adjust the height and position freely could meet all kinds container

Application

Product	Name	Application
	Medicinal glass bottle	For the determination of vertical axis deviation of various medicinal vials, infusion bottles, oral liquid bottles, ampoules and other drug packaging containers.
	Cosmetic bottles	For vertical axis deviation measurement of cosmetics bottles plastic bottles and glass bottles.
	Beer bottle	Determine verticality of glass bottles of bottled wine
	Plastic bottle	Infusion Bottle verticality testing machine used for the vertical deviation determination of beverage bottles, mineral water bottles, steam carbonated edible oil drums and other plastic bottles.

Technical Feature

★Microcomputer control,Large touch screen operation and display, Simple and fast HMI

★The tester has two measuring modes, circle run out mode and axis deviation mode can switch at will.

★Automatic statistical maximum, minimum, deviation, user-friendly analysis

★Easy fixture operation, high centering accuracy, improve the high measurement accuracy.

★The tester can store no less than 100 sets of data, each of which contains 10 measurements.

★Measuring head automatic movements, adjust the position of the measuring point, convenient and practical

★Vertical axis deviation test end automatic alarm, user-friendly design

★Infusion Bottle verticality testing machine equipped with micro-printer, fast printing test results

★Specialized computer software testing process display, output, and print functions, clearly and directly to the test results presented to the user

★Standard RS232 interface for easy connection of computers and LAN

Main Specifications

Standard
QB 2357 ,QB/T 1868 ,YBB00192003,GB 8452

Configuration

Infusion Bottle verticality testing machine Mainframe, Power Line
