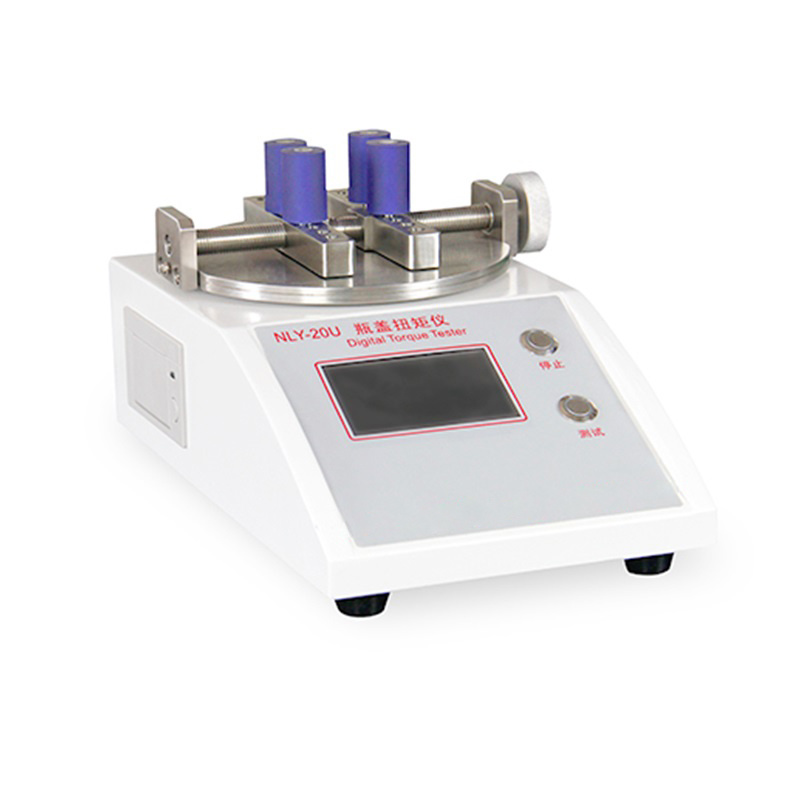

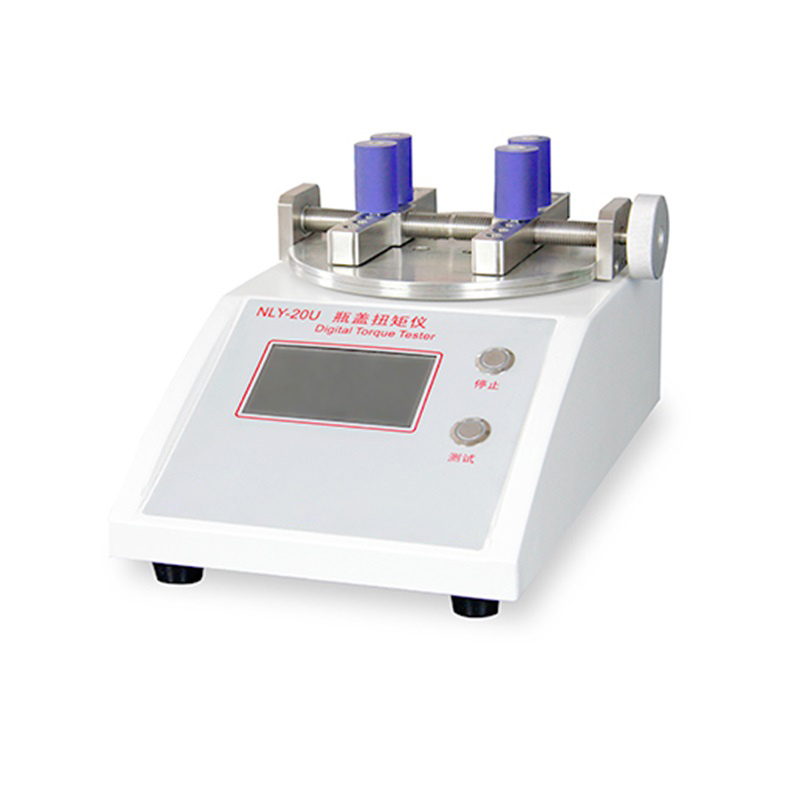

Cap Torque Tester NLY-20U
Another Name:
Scale range： 5Nm (10Nm optional)
Test accuracy： 1FS
Resolution： 0.001Nm
Clamping range： Φ5mm～Φ170mm
Data Storage ： 1-80
Machine size： 400mm×280mm×190mm
Weight： 8Kg
Environment temperature： 15℃-50℃
Relative humidity： No more than 80%，no dewdrop
Power supply： 220V,50Hz
Cap Torque Tester NLY-20U is used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles.
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
Cap Torque Tester NLY-20U is used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles. It the perfect online and offline testing instrument for many packaging industries
Application
|
Product |
Name |
Application |
 |
Medicinal plastic bottle |
Cap torque tester used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles,Medicinal plastic bottle |
 |
Sterile glass bottle | It is used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles,sterile glass bottle |
 |
Anti-theft caps | Cap torque tester used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles,anti-theft caps |
 |
Cosmetic bottles | Used to measure the open force, lock force and tighten force of the caps of resistant bottles, beverage bottles, mineral water bottles and feeding bottles,cosmetic bottles |
Technical feature
★The instrument is controlled by a micro-computer, Large touch screen operation and display, Simple and fast HMI
★Peak value holding function, automatic lifting function.
★Two test modes:open force and lock force
★N.m\kg.cm\ib.in multi-unit mutual conversion meets various standards
★Memorize testing results, which is convenient to checking
★Can give an alarm when setting a certain force, which is convenient to make standards
★Cap torque tester equipped with a micro printer, outputting data rapidly,which is easy to store.
★You can store no fewer than 500 sets of data, each set of data with 10 measurements
★Standard RS232 interface, network transmission interface, support LAN data centralized management and Internet information transmission
Main Specification
|
Technical parameter |
|
|
Scale range |
5Nm (10Nm optional) |
|
Test accuracy |
1FS |
| Resolution | 0.001Nm |
|
Clamping range |
Φ5mm～Φ170mm |
|
Data Storage |
1-80 |
|
Machine size |
400mm×280mm×190mm |
|
Weight |
8Kg |
|
Environment requirements |
|
|
Environment temperature |
15℃-50℃ |
|
Relative humidity |
No more than 80%，no dewdrop |
|
Power supply |
220V,50Hz |
Standards
GB/T 17876,BB/T 0025,BB/T 0034(GB/T 14803), ASTM D 2063,ASTM D 3198,ASTM D 3474
Configuration
Cap torque tester host and Power Line
