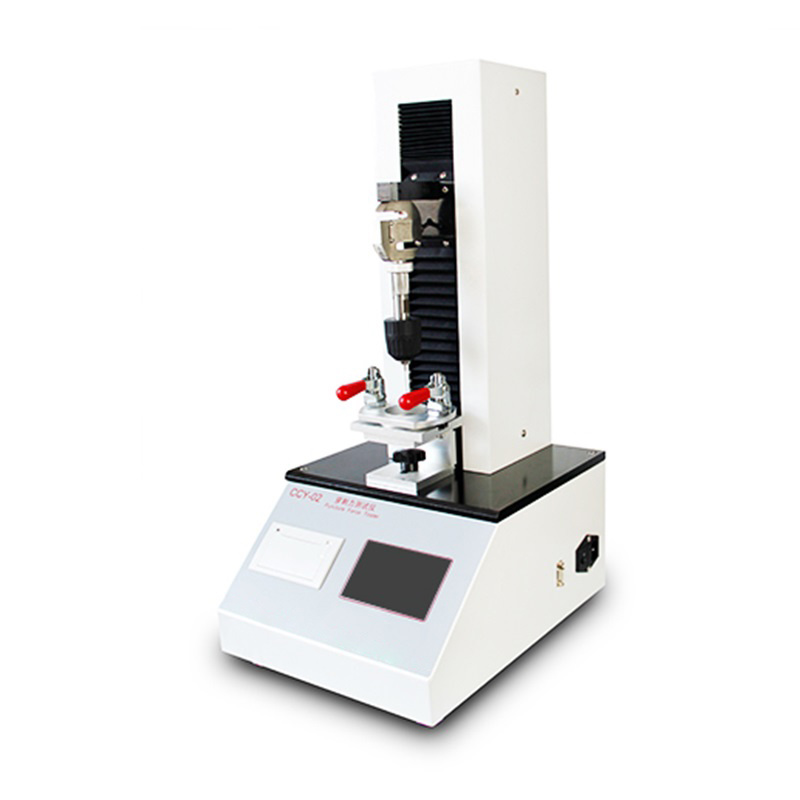

Puncture Force Tester CCY-02
Another Name:
Test range： 0-50N （Other stroke customized）
Test accuracy： ±1%
Test speed： 1-500mm/min Stepless
Speed accuracy： ±2%
Dimension： 310mm×400mm×560mm
Weight： 26Kg
Environment temperature： 15℃-50℃
Relative humidity： No more than 80%，no dewdrop
Power supply： 220V,50Hz
Puncture force tester CCY-02 is applied to test various kinds of materials such as thin film, composite film, battery separator, artificial skin, medicine packaging rubber plug, combination cover, oral liquid cover and other materials.
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
Puncture force tester CCY-02 is applied to test various kinds of materials such as thin film, composite film, battery separator, artificial skin, medicine packaging rubber plug, combination cover, oral liquid cover and other materials. Widely used in quality inspection institutions, testing institutions, packing factory, pharmaceutical factory, food factory and other units.
Test principle
The specimen clamped between two chuck and do relative motion. Conduct piercing or opening test through special clamp head. Collect the strength and displacement changes in the progress of test by force test and control system to calculate the corresponding force value data.
Application
|
Product |
Name |
Application |
  |
Plastic film |

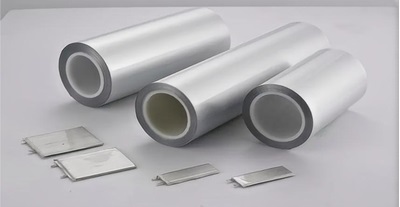

Used for test puncture strength for various kinds of thin films, battery diaphragm and other materials |
  |
Composite membrane |
It is used puncture strength for testing all kinds of composite films, film, cooking bags and other materials |
  |
Polypropylene composition cover | It is used for puncture strength for rubber plug and oral liquid cap etc.. |
  |

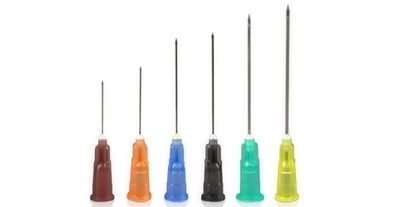

Injection needle | Puncture force tester is used to test the puncture strength test of artificial skin, injection needle and other materials. |
Technical feature
★Very large touch screen operation and display, Simple and fast HMI
★Professional computer software operating system, convenient for users to connect the computer for data storage, analysis and printing
★Imported sensor system, the test precision way ahead in the industry, effectively guarantee the accuracy of the test result
★Equipped with micro printer, it can print equipment serial number, sample batch number, laboratory personnel, test results, detection time and other complete test information.
★This screw drive system speed adjustable, ensure the test speed and displacement accuracy
★It is equipped with a micro printer, fast printing results
★Meet the GMP requirements of local data storage, automatic processing, statistical test data functions, and can not be modified to delete the format of export, to ensure the permanent storage of test results.
★This humanized fixture can be replaced for different size samples
★Puncture force tester can meet the requirements of the standard requirements of different puncture force test
Main Specification
|
Technical parameter |
|
|
Test range |
0-50N （Other stroke customized） |
|
Test accuracy |
±1% |
|
Test speed |
1-500mm/min Stepless |
|
Speed accuracy |
±2% |
|
Dimension |
310mm×400mm×560mm |
|
Weight |
26Kg |
|
Environment requirements |
|
|
Environment temperature |
15℃-50℃ |
|
Relative humidity |
No more than 80%，no dewdrop |
|
Power supply |
220V,50Hz |
Standards
ISO7864、GB/T10004,YBB00322004-2015,YBB00102005-2015,YBB00342002-2015,YBB00112005-2015,YBB00242004-2015 、GB15811
Configuration
Puncture force tester mainframe, sample Grips, microprinter, puncture force clamp,software,communication table
