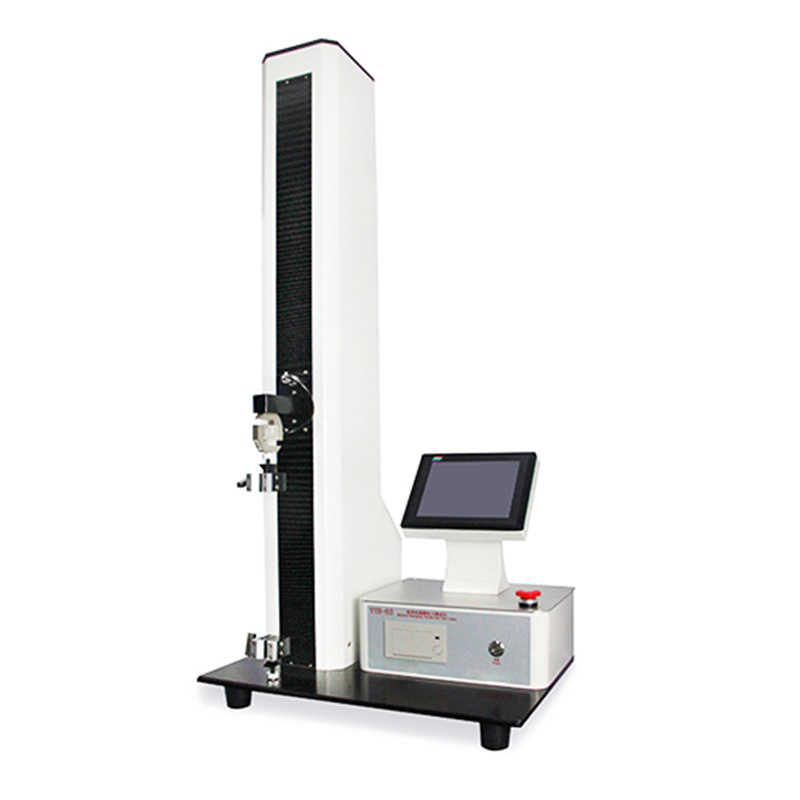

Medical package tensile and tear tester YYB - 03 is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc. Pharmaceutical package material ,for example bottle injection and infusion bottle aluminum cover, butyl rubber stopper, aluminum-plastic combination cover, polypropylene composite cover, thin film, composite membrane, medicinal aluminum foil, PVC plate, pre potting syringes, disposable syringes. Tensile and tear tester adopts high precision sensors, test results accurate and stable, the infinite speed can meet the requirements of different test speed. Instrument support a variety of test model, with different test fixture can meet different experimental requirements. YYB - 03 is a multi-purpose high-performance integrated pharmaceutical packaging performance testing instruments widely used in testing institutions, drug packaging materials production enterprises, pharmaceutical companies, medical device manufacturing enterprise.

Test principle

The specimen clamped between two chuck and do relative motion. Conduct piercing or opening test through special clamp head. Collect the strength and displacement changes in the progress of test by force test and control system to calculate the corresponding force value data.

Application

Product	Name	Application
	Ampoule	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc

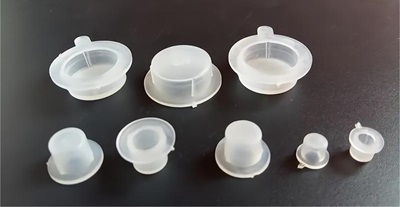

	Plastic combination cover	Medical package tensile and tear tester used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc
	Polypropylene composition cover	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc

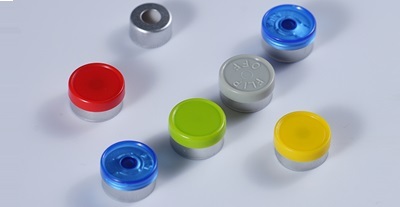

	Aluminum cover	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc

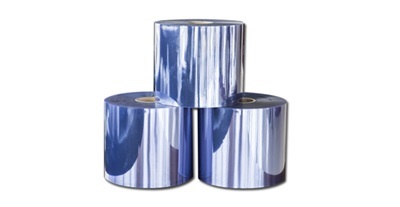

	PVC Hard Pieces	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc
	Disposable syringe	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc

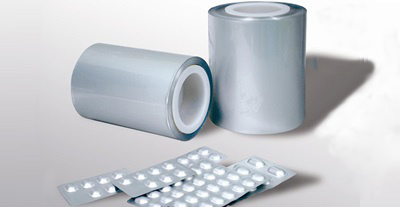

	Medicinal alum inum foil	It is used for test bridge linking force, piercing force,sliding property, device body tightness, opening force, tensile strength, thermal bonding strength and peel strength etc

Technical feature

★Unique hierarchical privilege management and data query function to facilitate user management

★The system program has ISP online upgrade function and can provide personalized service.

★Touch Screen Display, Microcomputer Control, Convenient and Fast

★Imported sensor system, test accuracy in the industry is far ahead, effectively ensuring the accuracy of test results.

★One machine has more than ten separate test items, such as tension and compression test, peeling strength, opening force and puncture force, to meet the test needs of different packaging materials.

★The speed of the screw drive system can be adjusted at will to ensure the accuracy of test speed and displacement.

★Equipped with micro printer to print experimental results quickly

★Various test items can be expanded by changing different fixtures.

★Intelligent configurations such as limit protection and automatic return ensure user's operation safety

★Professional computer software operating system to facilitate the users to connect a computer data storage, analysis and printing

★Pharmaceutical Packaging tear tensile tester with imported sensor system, test accuracy in the industry ahead, effectively guarantee the accuracy of test results

★Tensile and ctear tester with a peel strength, opening force, puncture force of four separate experiments project, to meet the different needs of packaging materials testing

★Screw adjustable speed drive system to ensure the accuracy of the test speed and displacement

★Equipped with micro-printer, fast printing results

★Conducted a variety of test projects through the exchange of different fixtures.

★Limit protection, automatic back intelligent configuration to ensure the safe operation of the user

Main Specification

Standards

GB2367,YBB00332002

Configuration

Standard :Medical package tensile and tear tester host, micro-printer, stopper puncture force clamps, ring-pull opening force fixtures, test software, communication cable
Optional  : Broken power fixture, jig combination lid opening force, stretching fixtures
