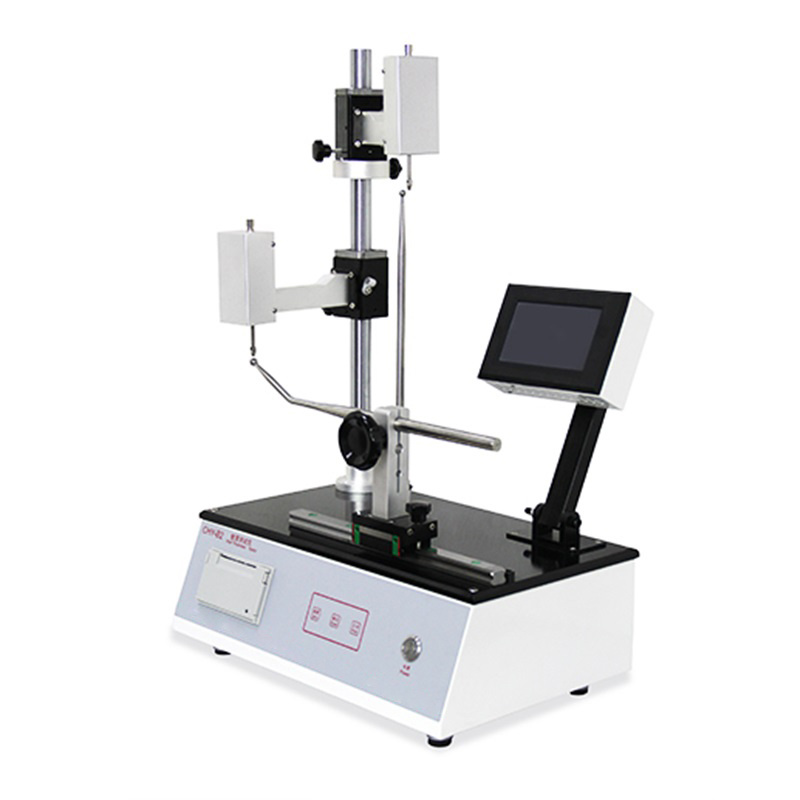

Wall thickness tester CHY-B2 used for test wall thickness of ampoules, vials, infusion bottles, beer bottles, plastic bottles in food, medicine, cosmetics and other industries. Wall  thickness tester CHY-B2 has double test functions: bottom and sidewall. Test resolution up to 0.001mm. Wall thickness tester can satisfy various capacity bottle by adjusting the height , is a professional high precision bottle thickness testing instrument which is widely used in the quality inspection institutions, testing institutions, packaging materials manufacturers, pharmaceutical companies, food companies and other units.

Application

Product	Name	Application
	Ampoule bottle	Test bottom and wall thickness for ampoules, vials, oral liquid bottles, infusion bottles
	Medical glass bottle	Test bottom and wall thickness for ampoules, vials, oral liquid bottles, infusion bottles
	Beer bottle	Used for measuring the thickness of medical bottle bottom and bottle wall.
	Plastic bottle	Wall thickness tester is used for measuring the thickness of the bottom and the bottle wall of plastic bottles.

Technical Feature

★Using capacitive sensing technology, with digital display

★Touch screen, real-time display of measuring point position and thickness value

★Unique user management functions to ensure data integrity and standardization

★Equipped with micro printer, quickly print each measurement results and statistical maximum, minimum, average value.

★Instrument can store no less than 100 sets of data, each group of data 10 measuring results.

★Adjustable test space, used for a wide range of products

★Wall thickness tester can test both bottom and wall thickness

★Convenient and practical, cost-effective

★Test accuracy of 0.001mm, value of number accuracy and stability

Main Specifications

Standard
GB12415-90,GB2641-90,GB2639-90

Configuration

Wall thickness tester host, measuring head
