Glass Bottle Heating Shock Resistance Tester RCY-03
Another Name:
Difference measuring range： 0～60℃
Temperature control precision： ±1℃
Capacity ： High temperature tank 31L Low temperature tank 56L
Tank conversion time： 10s±2s
Soaking time：High temperature tank 15min，Low temperature tank 30s
Machine size： 880mm×530×1300mm
Weight： 48Kg
Environment temperature： 5℃-40℃
Relative humidity： No more than 80%，no dewdrop
Power supply： 220V,50Hz

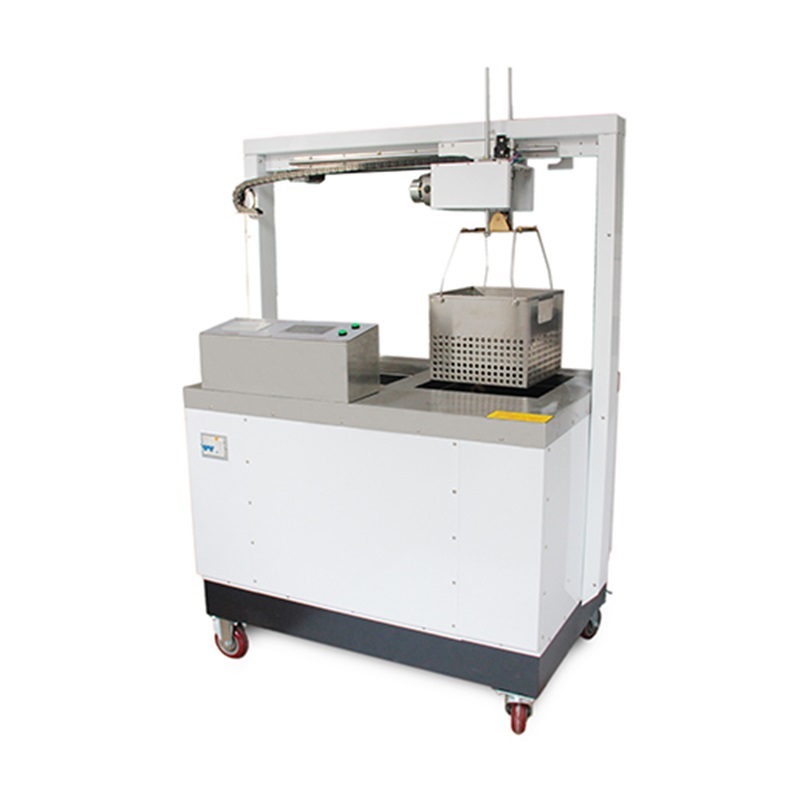

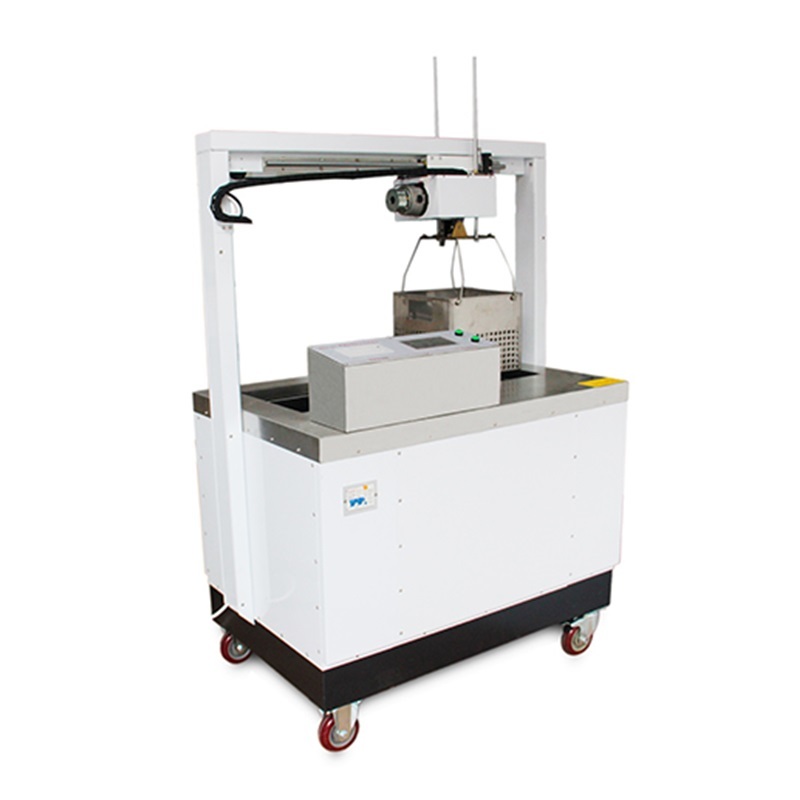

Glass bottle heating shock resistance tester RCY-03 is used for the heating shock resistance test for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, bottle of antibiotics etc..
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
Glass bottle heating shock resistance tester RCY-03 is used for the heating shock resistance test for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, bottle of antibiotics etc.. Heat shock is a glass container in a short period of time to withstand the impact of a certain temperature shock. The tester with the leakage protection device, safe and reliable performance.It is ideal testing machine for quality inspection institutions, beer, pharmaceuticals, glass production enterprise .
Test principle
Setting temperature for high temperature tank and low temperature tank to make it reach preset temperature difference. A certain number of specimens in high temperature tank after high temperature heating, quickly placed into the low temperature tank, observe sample breakage.
Application
|
Product |
Name |
Application |
|
|
Beer bottle |
Glass bottle heating shock resistance tester is used for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle. |
|
|
Liquor bottle, beverage bottle | It is used for test heating shock resistance for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle. |
  |
Infusion bottle | Used for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle. |
 |
Antibiotics bottle |
It is used for test heating shock resistance for all kinds of glass bottle like beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotics bottle. |
Technical feature
★Microcomputer control technology, the experiment process automation degree is high
★Heating tank, cooling tank, sample cage adopt stainless steel material, durable
★Sample cage uses electric hoist is convenient to use and reduce staff strength
★Equipped with leakage protection device, safe and reliable performance
★Hot and cold water respectively automatic cycle, with double window thermostat, easy to operate
Main Specification
|
Technical parameter |
|
|
Difference measuring range |
0～60℃ |
|
Temperature control precision |
±1℃ |
|
Capacity |
High temperature tank 31L Low temperature tank 56L |
| Tank conversion time | 10s±2s |
| Soaking time | High temperature tank 15min Low temperature tank 30s |
|
Machine size |
880mm×530×1300mm |
|
Weight |
48Kg |
|
Environment requirements |
|
|
Environment temperature |
5℃-40℃ |
|
Relative humidity |
No more than 80%，no dewdrop |
|
Power supply |
220V,50Hz |
Standards
ASTM C149-86 ,ISO/TC 63,ISO 7459:2004,BS EN 1183:1997,BS EN ISO7459,ISO/IEC 17025:2005
Configuration
Glass bottle thermal shock tester host, bottle basket, top and bottom water pipe
