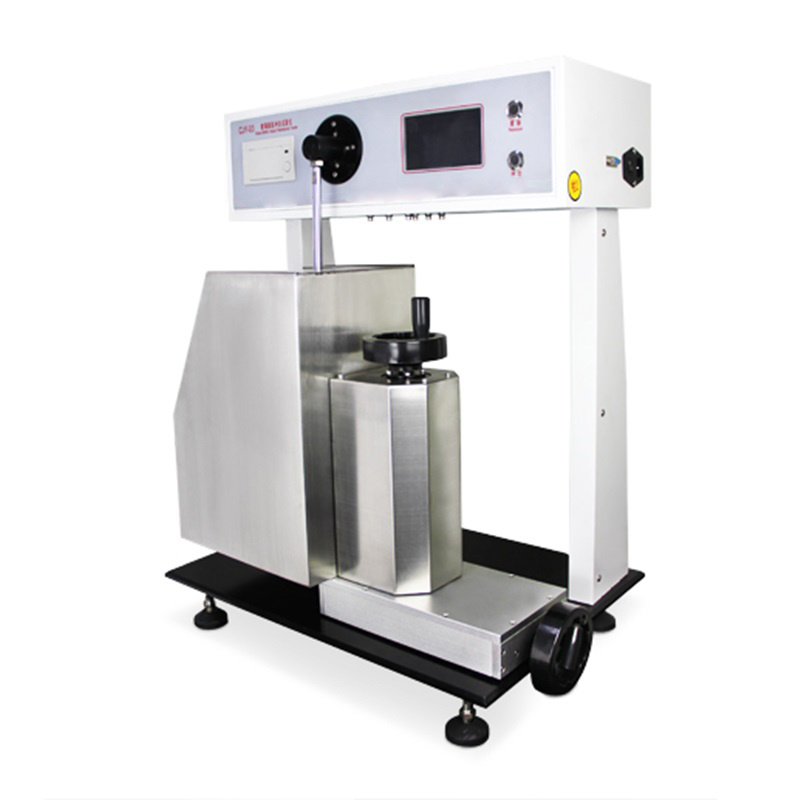

Glass bottle impact resistance tester CJY-03
Another Name:
Sample diameter range： φ20～165ｍｍ
Bottle position height： 20～180ｍｍ
Impact energy： 0～2.9N·m
Pendulum clamping way： Pneumatic
Resolution： 0.01N.m
Dimension： 420mm×330×500mm
Net weight： 28kg
Temperature： 15℃-35℃
Relative Humidity： No more than 80%，no dewdrop
Glass Bottle Impact Resistance Tester is suitable for test impact resistance for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, glass containers and other kinds of glass bottles, is the necessary testing instruments for quality inspection institutions, breweries, glass manufacturing enterprises etc..
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
Glass Bottle Impact Resistance Tester is suitable for test impact resistance for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, glass containers and other kinds of glass bottles, is the necessary testing instruments for quality inspection institutions, breweries, glass manufacturing enterprises etc..
Test principle
According to the principle of energy conversion, the pendulum impact energy to glass bottle is determined by the potential energy of the pendulum. When the angle of the pendulum is a certain value,pendulum potential energy is a certain value, the impact of the pendulum on the glass bottle is a certain value.
Application
|
Product |
Name |
Application |
 |
Glass bottle |
For impact resistance test for all kinds of beer bottles, beverage bottles and all kinds of glass bottles. |
  |
Infusion bottle |
For impact test, the volume of glass bottles, such as infusion bottles, etc.. |
  |
Vials |
Glass bottle impact resistance tester is used for test impact resistance for mold resistant bottle, antibiotic bottle |
Technical Feature
★LCD touch screen,can set the impact energy,impact angle and other indicators
★Electronic measurement mode,accuracy is 0.01J
★Pendulum pneumatic clamping and release,avoid human error
★Adjust the impact position according to the sample size
★The system statistical test data automatically
★Fast print ,test results permanent preservation
Main Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Sample diameter range |
φ20～165ｍｍ |
|
Bottle position height |
20～180ｍｍ |
|
Impact energy |
0～2.9N·m |
|
Pendulum clamping way |
Pneumatic |
|
Resolution |
0.01N.m |
|
Dimension |
420mm×330×500mm |
|
Net weight |
28kg |
|
ENVIRONMENT REQUIREMENT |
|
|
Temperature |
15℃-35℃ |
|
Relative Humidity |
No more than 80%，no dewdrop |
Configuration
Glass bottle impact resistance tester host
