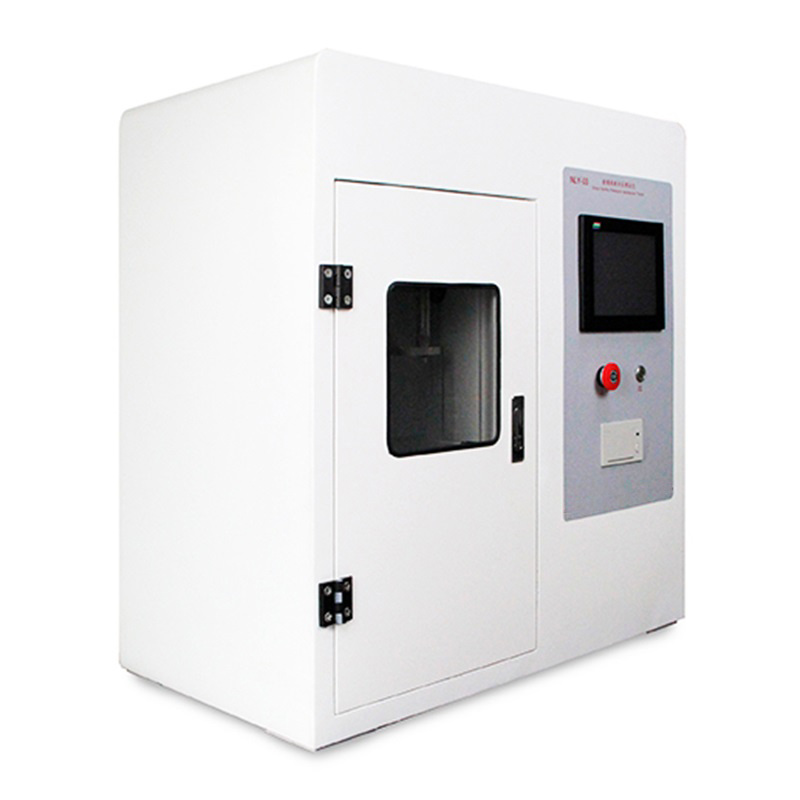

Glass Bottle Pressure Resistance Tester NLY-03
Another Name:
Test Range： 0～6 MPa
Test Accuracy： ±1%
Resolution： 0.01MPa
Ramp pressure： 0.4±0.1Mpa/s(5.8±1bar/s)
Dimension： 800*450*800mm
Net weight： 48kg
Temperature： 15℃-50℃
Relative Humidity： No more than 80%，no dewdrop
Power Supply： 220V,50Hz
Glass Bottle Pressure Resistance Tester NLY-03 is used for test bottle internal pressure for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotic resistance bottle .
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
Glass Bottle Pressure Resistance Tester NLY-03 is used for test bottle internal pressure for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottle, antibiotic resistance bottle. Show the whole experimental process automatically, bottle internal pressure tester can meet various glass holding pressure test and burst pressure test requirements, is the ideal testing instrument for quality inspection institutions, beverage production enterprises.
Test principle
The sample test plates affixed vertically hanging in the glass bottle ramp pressure tester test stand, the lower weight provided by weights hanging with displacement of the sample after a certain time off the stick, or the sample completely out of time to characterize the adhesive tape to resist the pull off capability.
Application
|
Product |
Name |
Application |
  |
Beer bottle |
Glass bottle ramp pressure tester is used for a variety of beer bottles, wine bottles, beverage bottles and other types of glass bottle internal pressure test. |
  |
Infusion bottle |
Pressure test and burst pressure test for glass bottles, such as infusion bottles, antibiotic bottles, etc.. |
  |
Vials |
Glass bottle internal pressure tester used for test internal pressure for moulding vial, antibiotic bottle. |
  |
Wine bottleI | It is used for test ramp pressure tester for wine bottle |
Technical Feature
★Four test mode completely meet standard requirements
★Touch screen operation, display test process
★Automatic watering function
★No complex hydraulic system, reduce leakage rate, easy maintenance
★User level authority management function to ensure the integrity and standardization of data
★Constant pressure keeping test ;and supercharge non-pressure test
★One key operation, display the whole test process
★Glass bottle ramp pressure testerEquipped with microprinter to print test result fast.
★Discard the traditional complex hydraulic system ,Reduce the leakage rate, easy to maintain
Main Specifications
|
TECHNICAL SPECIFICATIONS |
|
|
Test Range |
0～6 MPa |
|
Test Accuracy |
±1% |
|
Resolution |
0.01MPa |
|
Ramp pressure |
0.4±0.1Mpa/s(5.8±1bar/s) |
|
Dimension |
800*450*800mm |
|
Net weight |
48kg |
|
ENVIRONMENT REQUIREMENT |
|
|
Temperature |
15℃-50℃ |
|
Relative Humidity |
No more than 80%，no dewdrop |
|
Power Supply |
220V,50Hz |
Standard
ISO 7458：2004 、GB/T 4546-2008、 YBB00172003
Configuration
Glass Bottle Pressure Resistance Tester host,Microprinter
