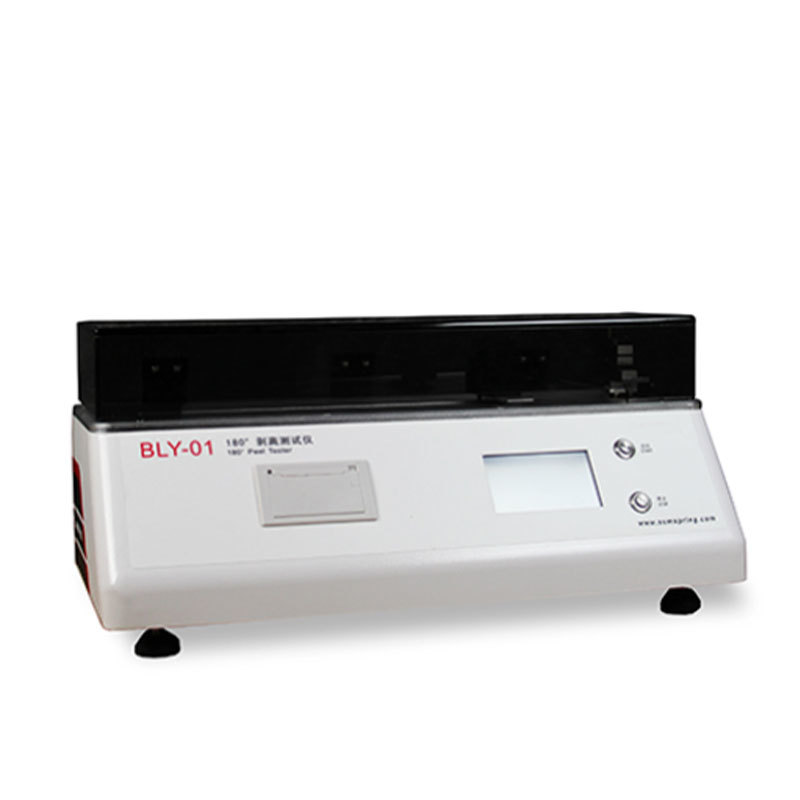

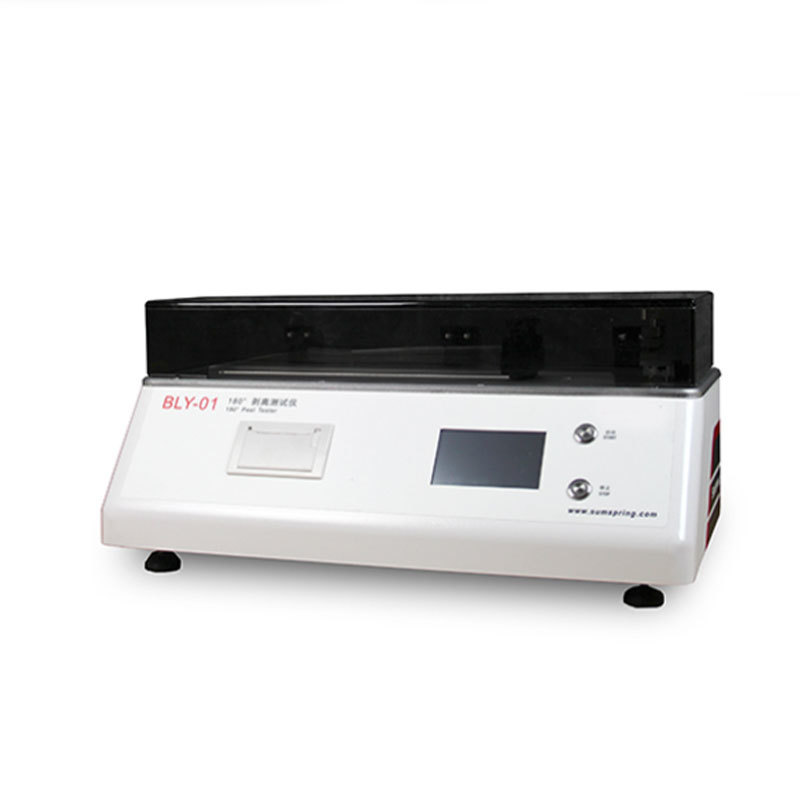

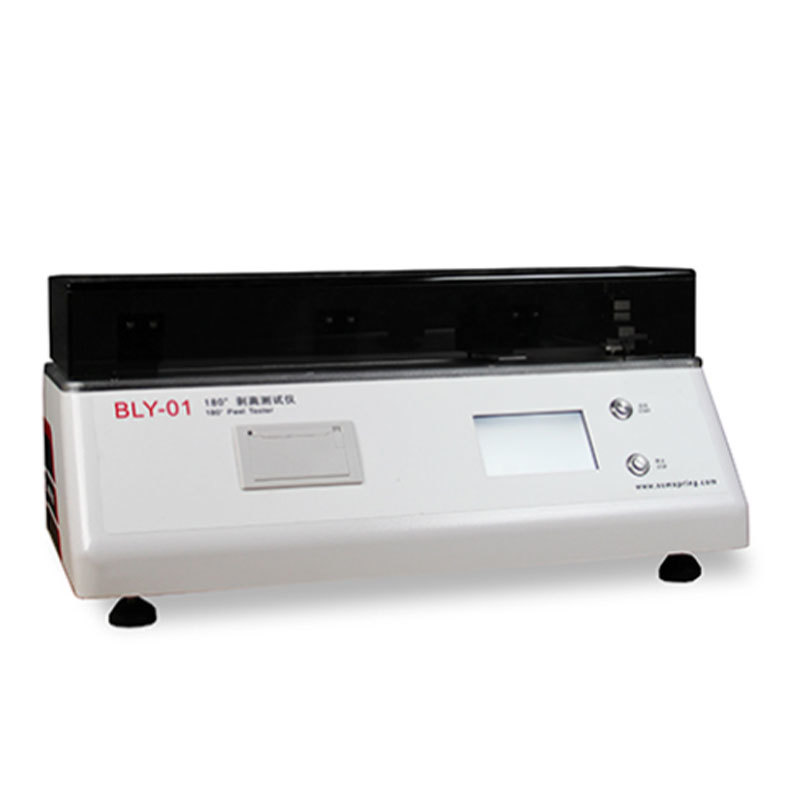

180°Tape Peel Tester BLY-01
Another Name:
Standard Roller:2000g±50g
Top Test Load:30N(Range can be customized)
Valid Range:2%-100%FS
Resolution:0.1N
Accuracy:1 FS
Test Speed:1-500 mm/min (Step Less)
Displacement Resolution:0.01mm
Speed Accuracy:≤±2%
Sample Width:0<L≤30mm
Dimension:550mm×370mm×240mm
N.W.:28 kg
Temperature :15℃-30℃
Relative Humidity No more than 80%，no dewdrop
Power Supply:220V 50Hz
Standard Configurations: Mainframe, Sample Grips, Micro Printer, Standard Pressure Roller and Test Panel
Optional Configurations: Professional Software and Communication Cable
Update date：
Online consultation
Consultation Form
Request a speed sample — Of this product
Enquire — About this product
Service Phone: +86 531 81180905
Product Details
Company Profile
BLY-01 180° Tape Peel Tester can be used for test peeling, stripping and other performance of adhesives, adhesive tapes, pressure sensitive tapes, medical adhesive bandage, protection films, release paper, laminated films, films and paper.
Standards:JISZ 0237,QB/T 2358GB 4850,GB 7754,GB 8808,GB 13022,GB 7753,GB/T 17200,GB/T 2790,GB/T 2791,GB/T 2792
PRODUCT APPLICATION

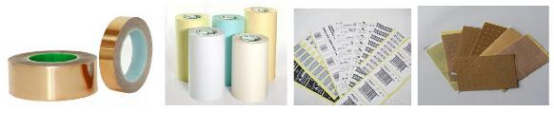

Pressure-Sensitive Tapes, Adhesive Labels, Medical Adhesive Tapes, Rubber, Waterproofing Roll-roofing, Protection Films
TECHNICAL FEATURE
★Microcomputer control, large LCD, PVC operation panel
★Horizontal structure, sensor values without affecting the weight of the fixture
★Micro-printer output data fast, user-friendly storage
★Infinitely variable, tape peel tester meet a variety of test standards
★With a test force value hold function, see the results more convenient
★Metal buttons, durable
TEST PRINCIPLE
Place test sample face to the standard test plate, rolling three times with a standard pressure roller , place a while, then clamping on the tape peel tester, peel test specimens from plates in the form of 180 °, the force sensor records valuer during the peeling progress.
|
TECHNICAL SPECIFICATIONS |
|
|
Standard Roller |
2000g±50g |
|
Top Test Load |
30N(Range can be customized) |
|
Valid Range |
2%-100%FS |
|
Resolution |
0.1N |
|
Accuracy |
1 FS |
|
Test Speed |
1-500 mm/min (Step Less) |
|
Displacement Resolution |
0.01mm |
|
Speed Accuracy |
≤±2% |
|
Sample Width |
0<L≤30mm |
|
Dimension |
550mm×370mm×240mm |
|
N.W. |
28 kg |
|
ENVIRONMENT REQUIREMENT |
|
|
Temperature |
15℃-30℃ |
|
Relative Humidity |
No more than 80%，no dewdrop |
|
Power Supply |
220V 50Hz |
|
Configurations |
|
|
Standard Configurations: Mainframe, Sample Grips, Micro Printer, Standard Pressure Roller and Test Panel |
|
